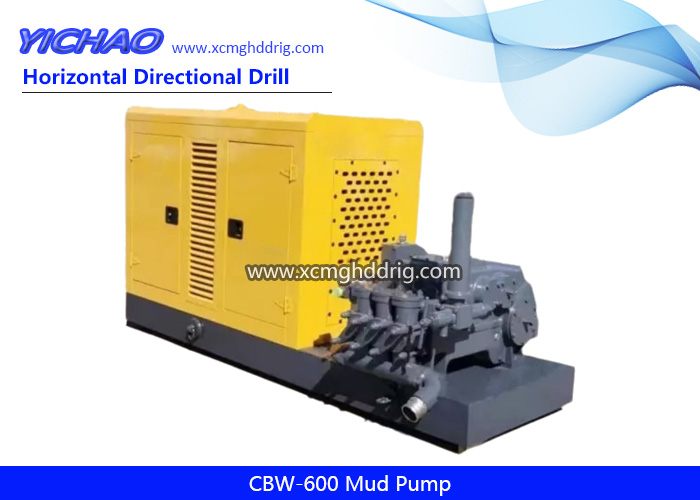

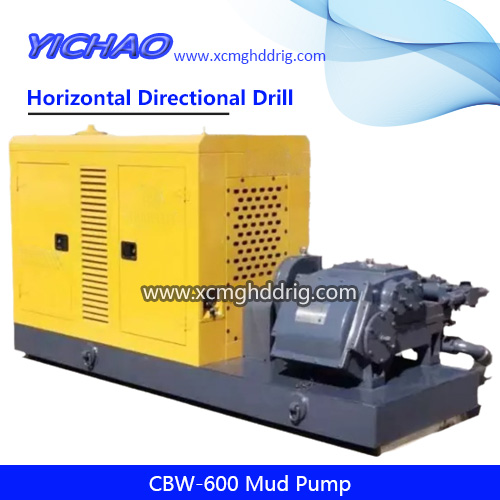

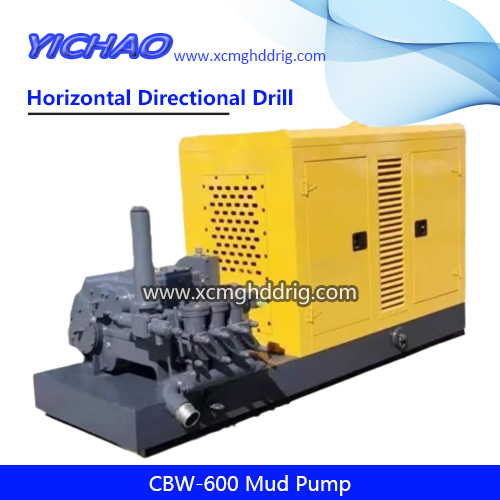

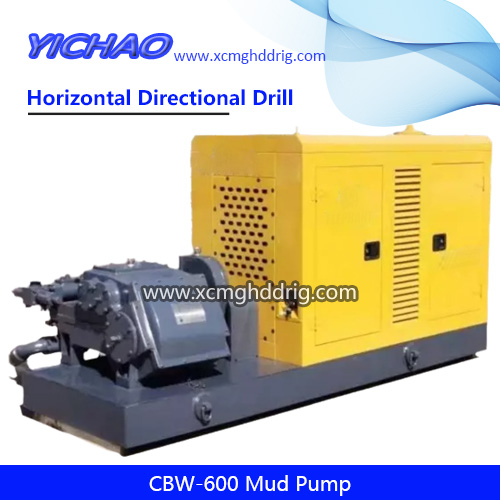

CBW-600 mud pump for drilling wells is a multi-purpose three-cylinder reciprocating single-acting pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
| Modell | CBW-600 |
| Typ | Diesel Engine Mud Pump |
| Takt | 110 |
| Cylinder Diameter | 100 |
| Fluss | 195-600 L/min |
| Druck | 3.5-10 MPA |
1. With Cummins diesel engine；
2. Compact structure, small volume, durable service；
3. Einfache Bedienung, zuverlässige Leistung；
4. Good disassembly, easy maintenance and relocation.
| Typ | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Takt (mm) | 110 |
| Cyclinder Diameter (mm) | 100 |
| Fluss (L/min) | 600 415 280 195 |
| Druck (MPA) | 3.5 5 7.5 10 |
| Input Speed (u/min) | 550 |
| Abmessungen (mm) | 2410*1785*1670 |
| Gewicht (kg) | 2100 |
| Diesel Model | R4105ZP |
| Leistung des Dieselmotors (KW) | 60 |
| Bewertete Geschwindigkeit (u/min) | 1450 |
