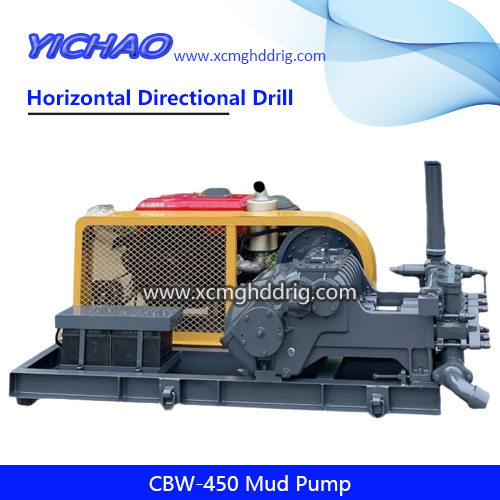

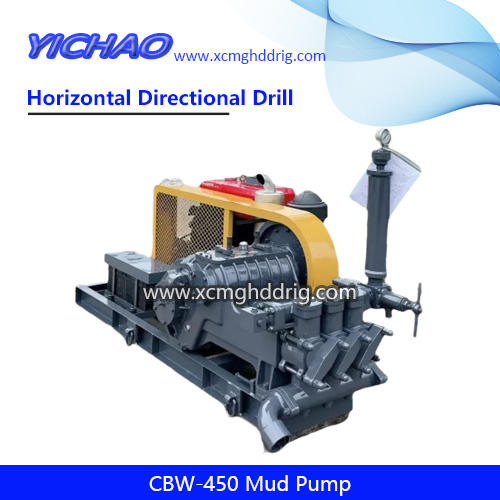

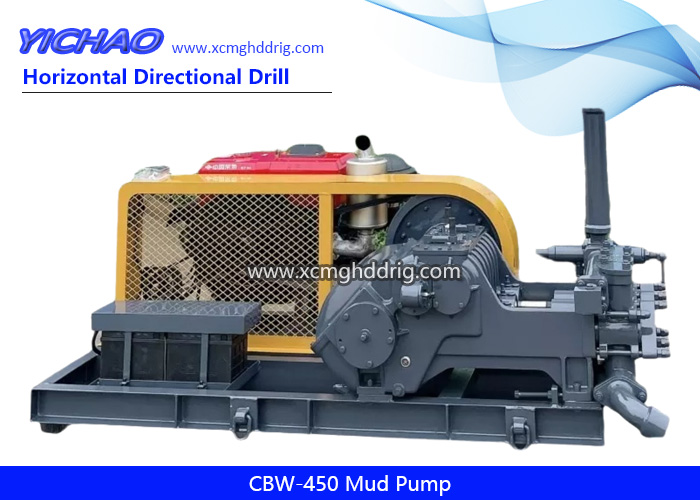

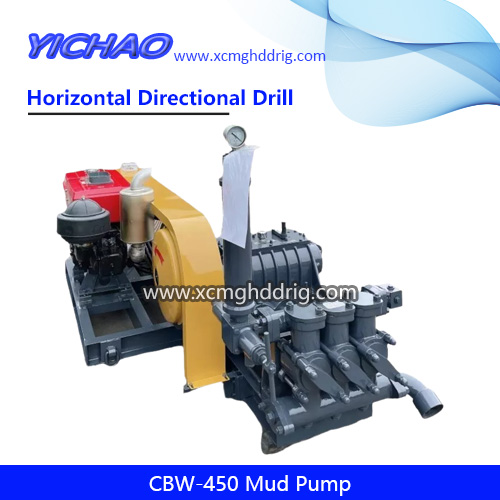

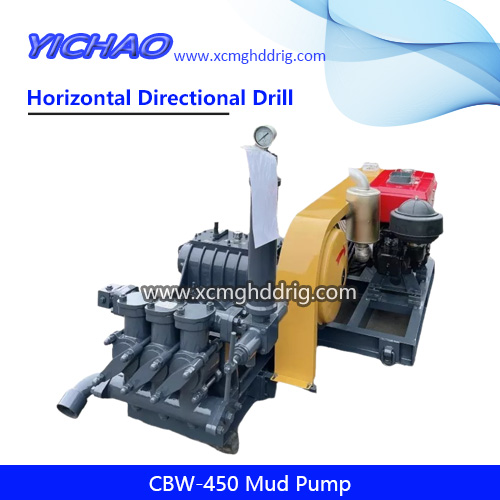

CBW-450 small drilling mud pump is a multi-purpose horizontal three-cylinder reciprocating single-acting piston pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
| Modell | CBW-450 |
| Typ | Diesel Engine Mud Pump |
| Takt | 110 |
| Cylinder Diameter | 95 |
| Fluss | 160-450 L/min |
| Druck | 2-5 MPA |
1. With diesel engine；
2. Compact structure, small volume, durable service；
3. Einfache Bedienung, zuverlässige Leistung；
4. Good disassembly, easy maintenance and relocation.
| Typ | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Takt (mm) | 110 |
| Cyclinder Diameter (mm) | 95 |
| Pump Speed (u/min) | 196 140 100 71 |
| Fluss (L/min) | 450 320 230 160 |
| Druck (MPA) | 2 3 4 5 |
| Maximum Input Torque (Nm) | 420 |
| Input Speed (u/min) | 490 |
| Bewertete Leistung (KW) | 18 |
| Maximum Water Absorption Height（m） | 2.5 |
| Inlet Connector | RC 3 |
| Outlet Connector | M42 x 2 |
| Abmessungen (mm) | 2320*1360*1300 |
| Gewicht (kg) | 1100 |
| Driving Type | Single Cylinder Diesel Engine Pulley Rotation |
| Diesel Model | L32M |
| Leistung des Dieselmotors (KW) | 23 |
| Diesel Engine Speed (u/min) | 2000 |
| Starting Voltage (V) | 24 |
