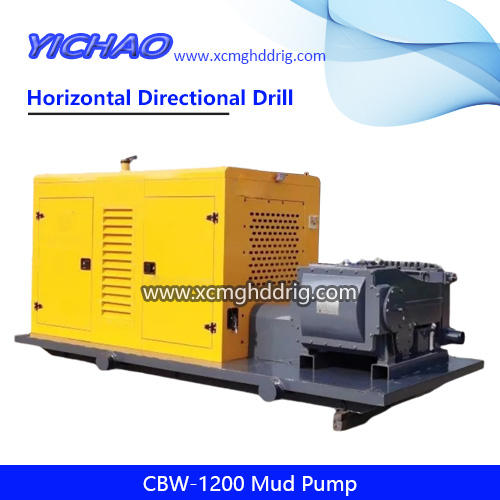

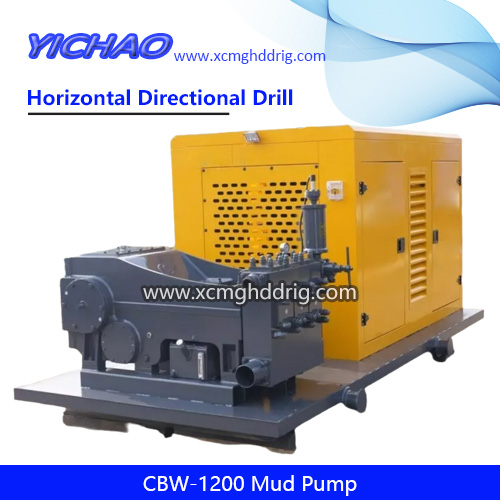

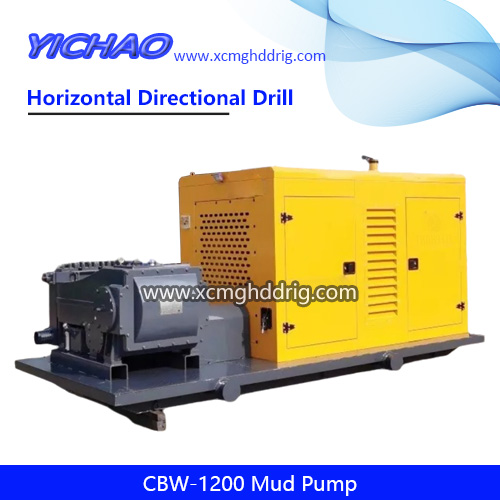

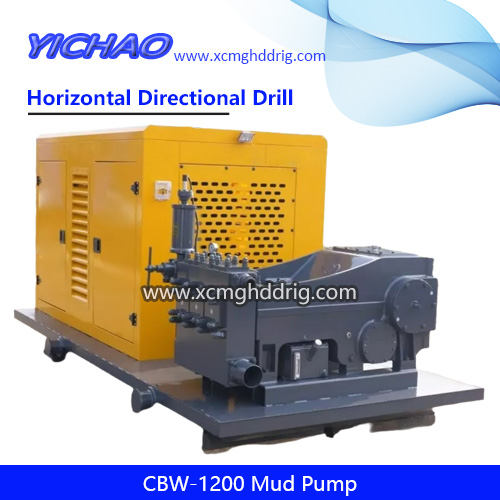

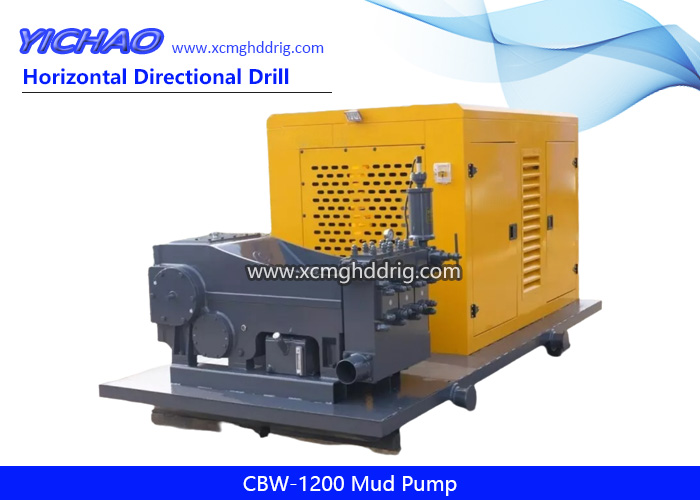

CBW-1200 Explosion-proof mud pump is a horizontal triplex reciprocating single-acting piston pump with five-speed flow.
It can not only meet the requirements of a variety of new drilling technologies, but also be used for various soft foundation grouting treatment, engineering construction drilling, water well drilling, mountain water supply, mine drainage, dyke grouting and other purposes.
Its main role in drilling process is to supply flushing fluid to the drilling hole to circulate in the drilling hole, so as to carry cuttings back to the ground, keep the bottom of the hole clean, protect the wall of the hole from collapse, and cool and lubricate the drill bit and drilling tool.
| Modell | CBW-1200 |
| Typ | Diesel Engine Mud Pump |
| Takt | 150 |
| Cylinder Diameter | 120 |
| Fluss | 363-1200 L/min |
| Druck | 4.5-12 MPA |
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Einfache Bedienung, zuverlässige Leistung；
4. Good disassembly, easy maintenance and relocation.
| Typ | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Takt (mm) | 150 |
| Cyclinder Diameter (mm) | 120 |
| Fluss (L/min) | 1200 890 660 485 363 |
| Druck (MPA) | 4.5 6 8 10 12 |
| Input Speed (u/min) | 100 |
| Abmessungen (mm) | 3930*2096*1908 |
| Gewicht (kg) | 4180 |
| Diesel Model | QSB5.9-C180 |
| Leistung des Dieselmotors (KW) | 132 |
| Bewertete Geschwindigkeit (u/min) | 1800 |
