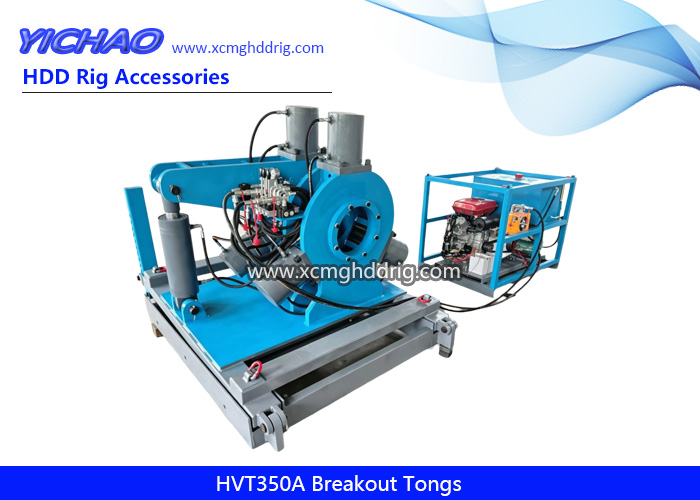

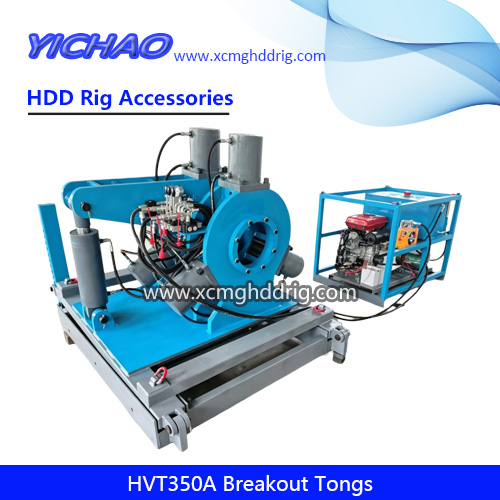

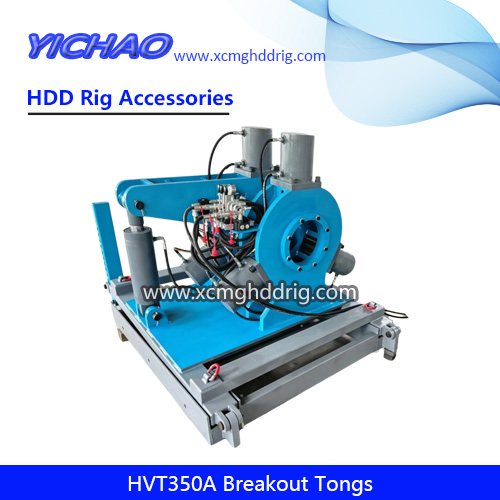

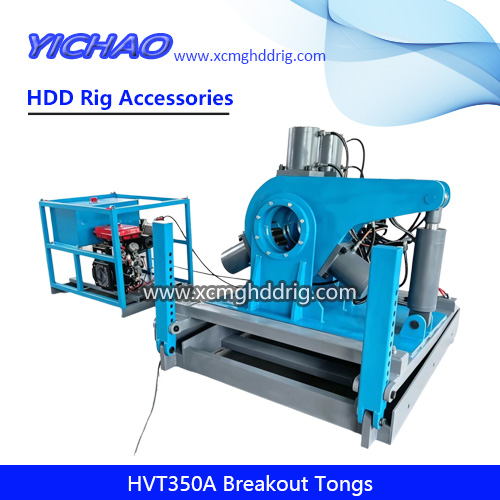

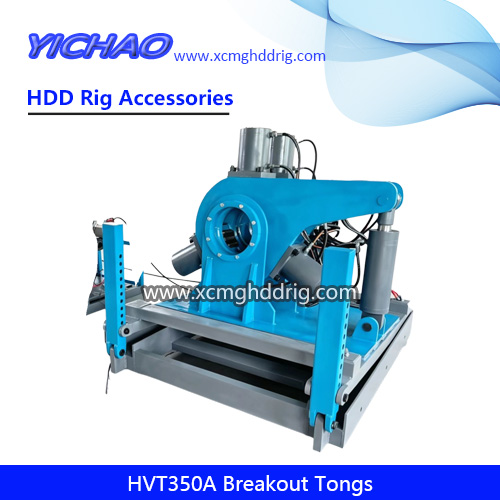

HVT350A Hydraulic Breakout Tong,Drill Pipe/Rods Shackle System for Horizontal Directional Drilling.
HVT350A Main Technical Parameters
1. Through hole: 13 Pulgadas
2. Diameter of clamping tube: 6~12in
3. Suitable drill pipes: 5En; 5 1/2En; 6 5/8En; 7 5/8En
4. Par de grilletes: 350KN.m
5. Tightening torque: 240KN.m
6. Inclination angle: 5°~15°
7. Spacer between support heads: 13 Pulgadas
8. Cilindro de apriete principal: 500KN
9. Cilindro de apriete trasero: 500KN
10. Cilindro de par: 400KN
11. Diesel engine pump station: 20HP
12. Pump flow rate: 35L/min (air-cooled)
13. Presión: 30MPa
14. Fuel tank: 150L
15. Peso: approximately 3000kg
16. Dimensiones: 2300x2000x1800mm
