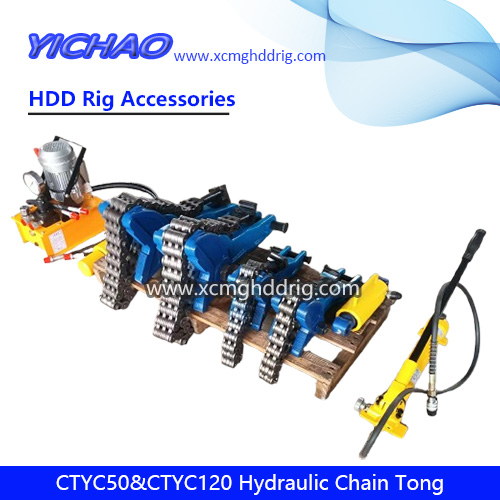

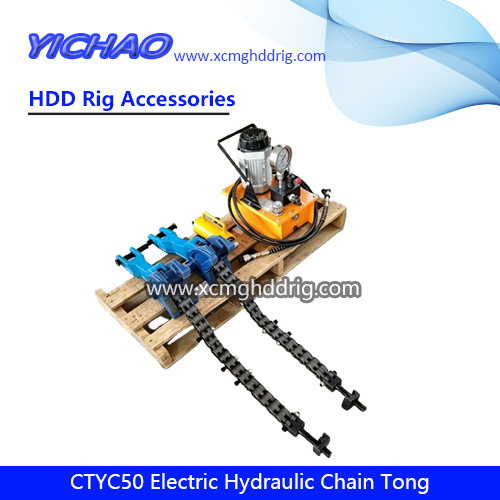

CTYC50 Electric Hydraulic Chain Shackle HDD Drilling Rig/Rods Breakout Tong

CTYC50 Electric hydraulic chain tong
1. Clamping diameter: 76-230 mm
2. Max. screwing/shackling torque: 50 kN.m
3. Weight of tong body:28 kg/pc
4.Dimensions of tong body: 560x230x200 mm
5. Electric hydraulic pump max. pressure: 63 MPa
6. Hydraulic pump weight: 30 kg
7.  Electric pump oil tank capacity: 8 L
8. Power: 220 V/750 W
9. Cylinder max. thrust force: 20 kN
10. Cylinder max. pressure: 63 MPa
11.  Cylinder stroke: 200 mm
12. Cylinder weight: 10 kg
13. Oil tube length: 2000 mm x 2
